Brand: SY CHEMICAL
Models:25/50/80/100/150mm
Material: Ceramic
Application:Improve cooling efficiency by increasing the contact area in cooling towers.
A:Please send us your product specifications, quantity, and application details. Our sales team will provide a prompt quotation and professional recommendation based on your requirements.
A:We use standard export packaging to ensure safe transportation. Packaging methods can be customized according to product type and customer requirements to protect the goods during shipment.
1、the cross-ring design enables the gas-liquid two-phase to form a more complex flow path within the packing layer, prolonging the contact time and strengthening the mass transfer process.
2、mohs hardness> 6.5, high compressive strength, not easy to break
3、low porosity and low water absorption ensure that it remains structurally stable in long-term operation.
suitable for high temperature drying, low temperature absorption and other working conditions.
5、 Suitable for high-efficiency, low-pressure-drop applications (such as laboratories or precision separations).
6、 Suitable for high-throughput, low-efficiency applications (such as industrial waste gas treatment).

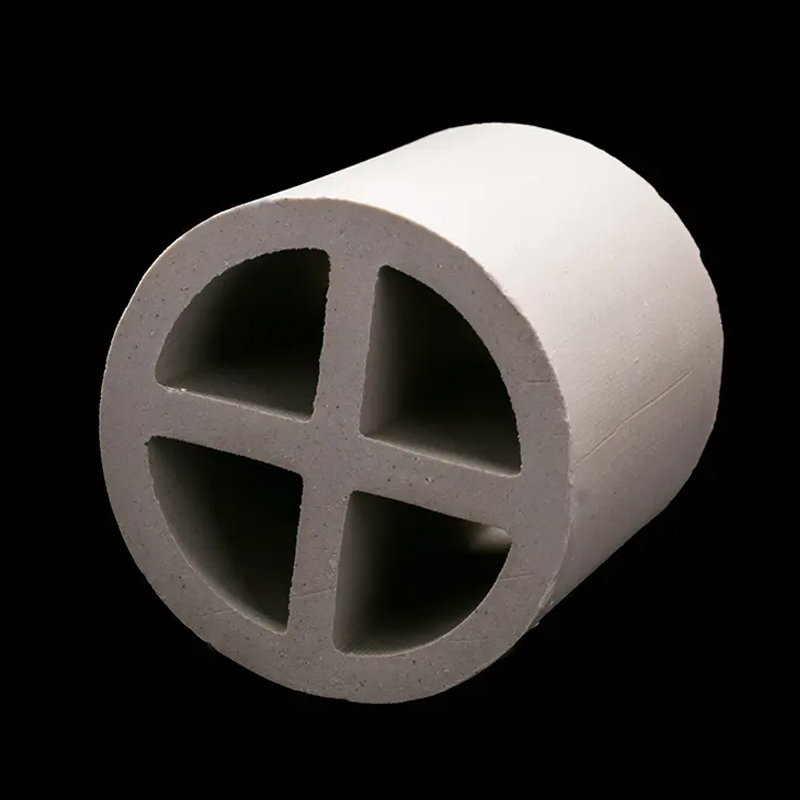

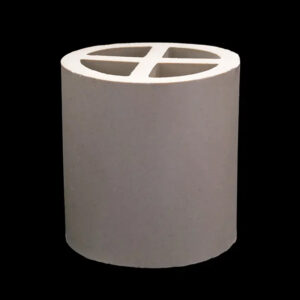

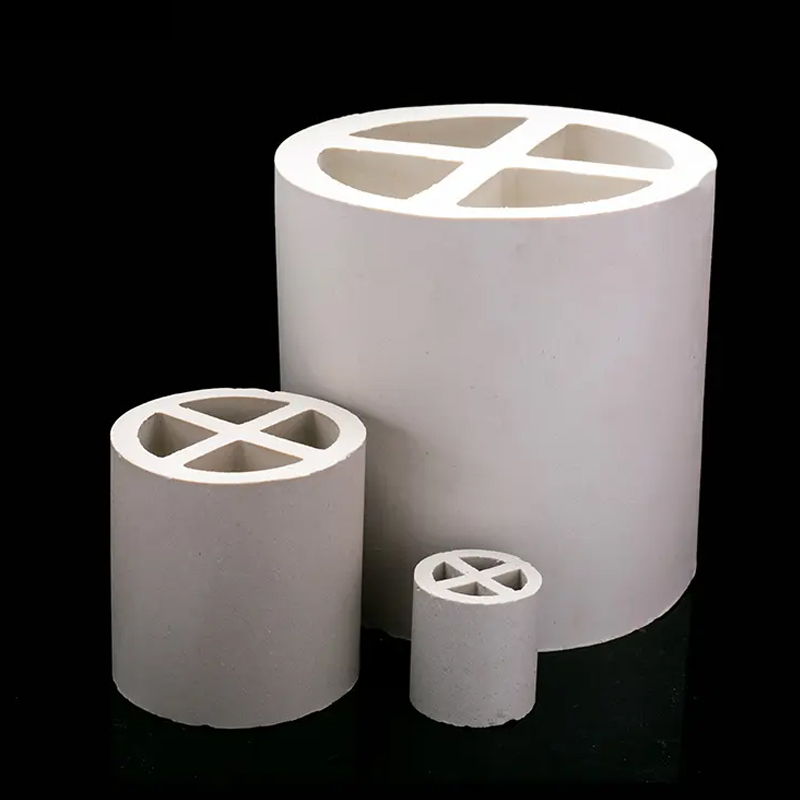

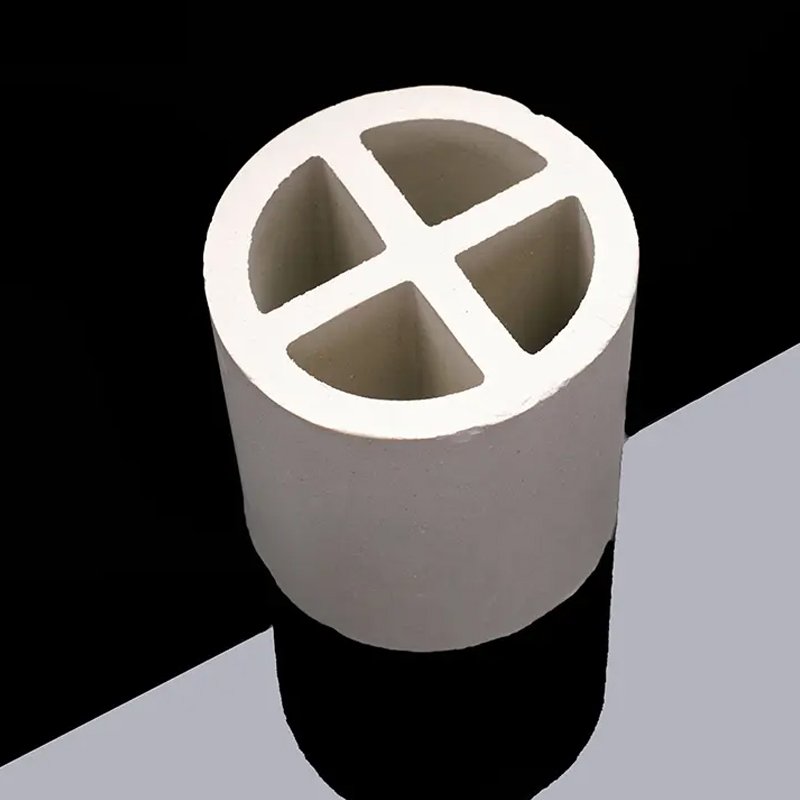

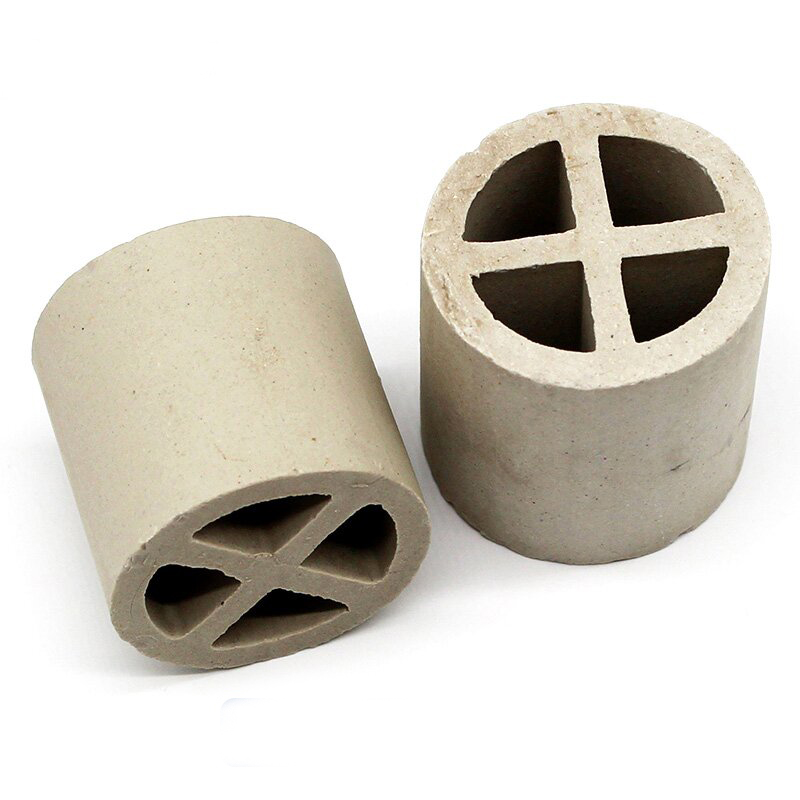

Ceramic Cross Ring is improved by ceramic raschig ring,with better surface area and compressive strength than raschig ring,with excellent acid resistance and heat resistance.They can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently their application ranges are very wide.Ceramic Cross Ring can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Technical data
| SiO2 + Al2O3 | >92% | CaO | <1.0% |
| SiO2 | >76% | MgO | <0.5% |
| Al2O3 | >17% | K2O+Na2O | <3.5% |
| Fe2O3 | <1.0% | Other | <1% |
Physical & Chemical properties
| Water absorption | <0.5% | Moh’s hardness | >6.5 scale |
| Porosity | <1% | Acid resistance | >99.6% |
| Specific gravity | 2.3-2.40 g/cm3 | Alkali resistance | >85% |
| Max Operation temp | 1200℃ |
Dimension and Other Physical Properties
|
Size (mm) |
Thickness (mm) |
Surface area (m2/m3) |
Voidage (%) |
Number Per M3 |
Bulk Density (Kg/m3) |
|
25 |
3.5 |
220 |
52 |
50000 |
850 |
|
50 |
5.5 |
150 |
53 |
6400 |
800 |
|
80 |
8 |
120 |
54 |
1960 |
916 |
|
100 |
10 |
110 |
53 |
1000 |
930 |
|
150 |
15 |
60 |
58 |
296 |
960 |
Packaging & Shipping
|
Package Type |
Container Load Capacity |
||
|
20 GP |
40 GP |
40 HQ |
|
|
Ton bag |
20-24 m3 |
40 m3 |
48 m3 |
|
Plastic bag |
25 m3 |
54 m3 |
65 m3 |
|
Paper box |
20 m3 |
40 m3 |
40 m3 |
|
Delivery time |
Within 7 working days |
10 working days |
12 working days |
|
Comments: |
Customized making is allowed. |
||
Ceramic cross-plate rings, with their enhanced mass transfer efficiency, corrosion resistance, and cost-effectiveness, have become a key packing choice in the chemical, environmental, and energy sectors. They are recommended for the following applications:
1、Absorption/desorption processes requiring efficient gas-liquid contact.
2、Processes with corrosive media or requiring high-temperature operation.
3、Retrofit projects requiring improved separation efficiency with limited budgets.
4、Waste Gas Treatment: Treats acidic waste gases in spray towers.
5、Wastewater Treatment: Serves as a filler in biofilters, supporting microbial attachment.
5、Wastewater Treatment: Serves as a filler in biofilters, supporting microbial attachment.
6、Absorption/desorption towers: Used for gas purification and solvent recovery.
7、Drying towers: Efficiently remove moisture and volatile substances from gases.
