Brand: SY CHEMICAL
Models:90mm
Material:Plastic
Water treatment: Condensate storage tanks, demineralized water tanks, biological carriers for wastewater treatment
A:Please send us your product specifications, quantity, and application details. Our sales team will provide a prompt quotation and professional recommendation based on your requirements.
A:We use standard export packaging to ensure safe transportation. Packaging methods can be customized according to product type and customer requirements to protect the goods during shipment.

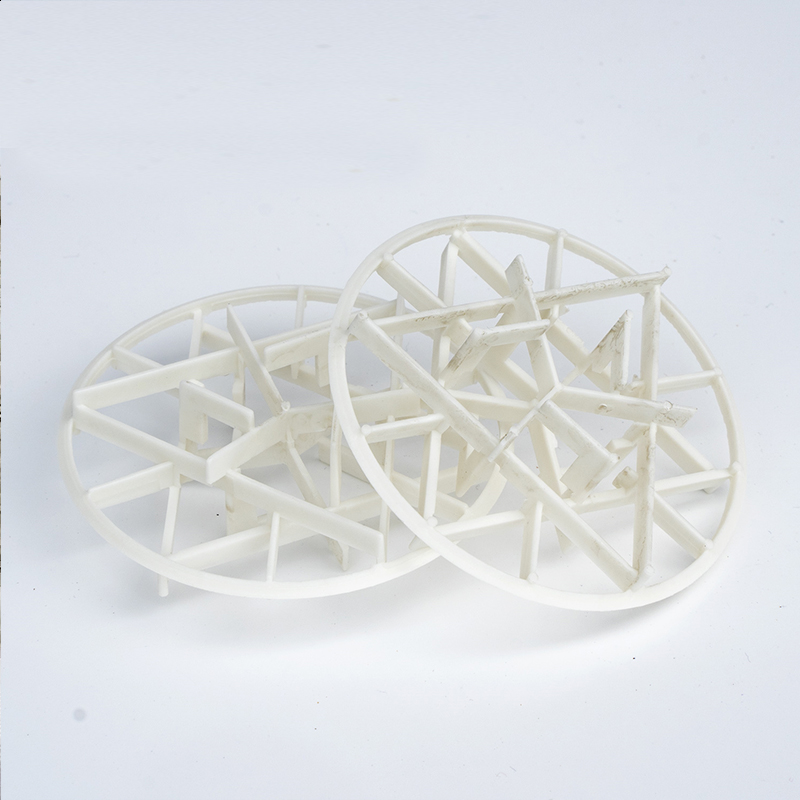

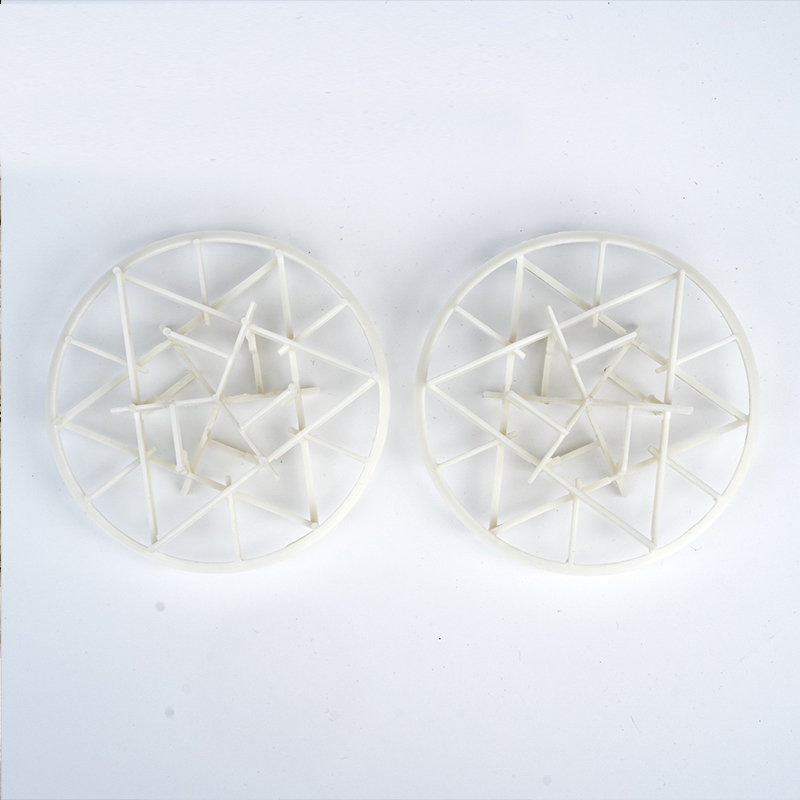

Structural design: The structure is made of multiple thin sheets forming an irregular porous structure (snowflake-like) to ensure full contact between gas and liquid.
High corrosion resistance: Polypropylene (PP) material can withstand corrosion from acids, alkalis and chemical solvents.
Low pressure drop and high efficiency: The mass transfer unit is low in height and has a high flooding point, which significantly reduces energy consumption.
Lightweight and high-strength: High mechanical strength, allowing for a higher packing layer height, reducing equipment load.
Low pressure drop: The fluid has less resistance to flow, reducing energy consumption and optimizing system operating costs.
| Product Name | Plastic Snowflake Ring | |||||
| Material | PP,PE,PVC,CPVC,PVDF ,etc | |||||
| Life Span | >3 years | |||||
| Size | Surface Area
m2/m3 |
Void Volume
% |
Packing Number
pieces/ m3 |
Packing Density
Kg/m3 |
Dry Packing Factor m-1 | |
| Inch | mm | |||||
| 3-1/2” | 90 | 138 | 97 | 5000 | 45 | 142 |
| Feature | High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer. | |||||
| Advantage | 1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability.
2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload. |
|||||
| Application | These various plastic tower packing are widely used in petroleum and chemical,alkali chloride,gas and environmental protection industries with max. temperature of 150°. | |||||
