Brand: SY CHEMICAL
Models: 20/25/38/50/65/76
Material:PTFE
Application: High thermal stability and corrosion resistance in industrial applications.
A:Please send us your product specifications, quantity, and application details. Our sales team will provide a prompt quotation and professional recommendation based on your requirements.

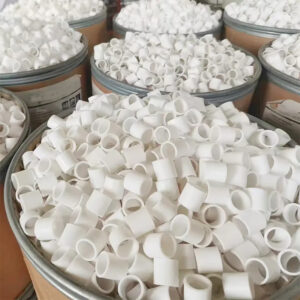

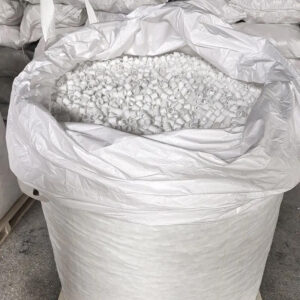

A:We use standard export packaging to ensure safe transportation. Packaging methods can be customized according to product type and customer requirements to protect the goods during shipment.

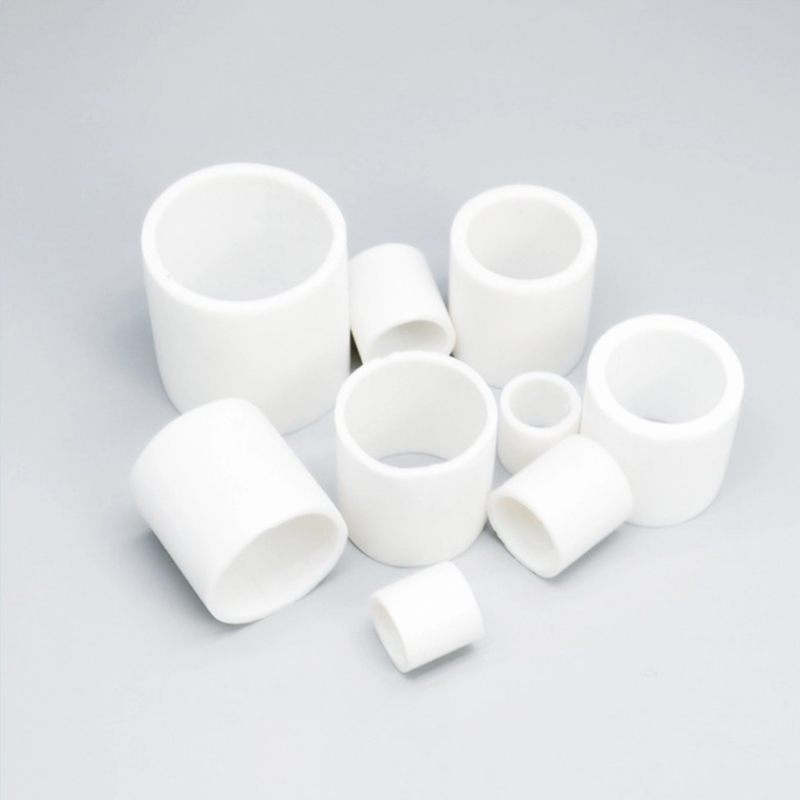

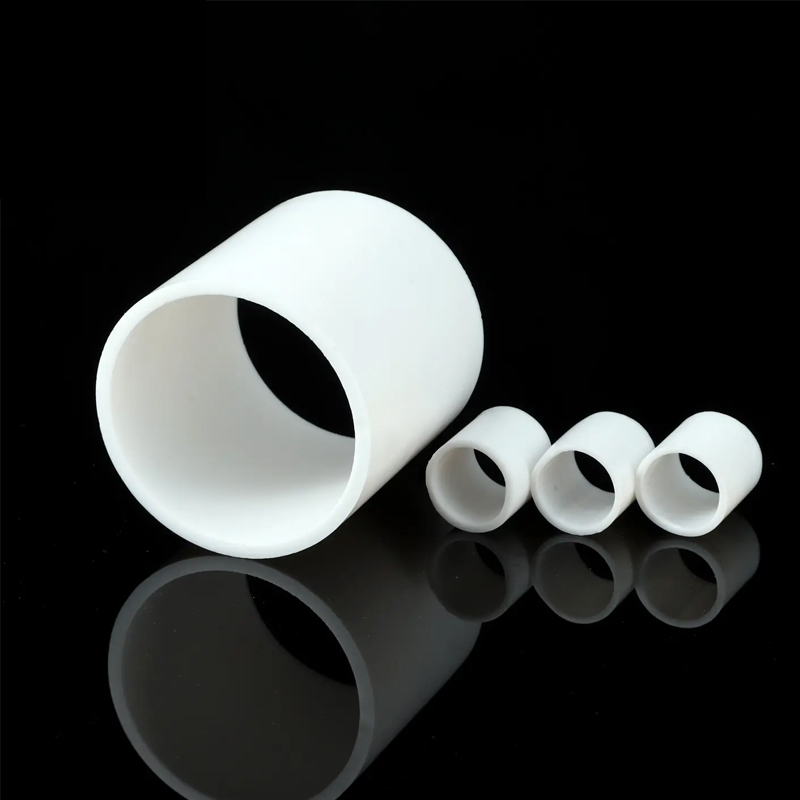

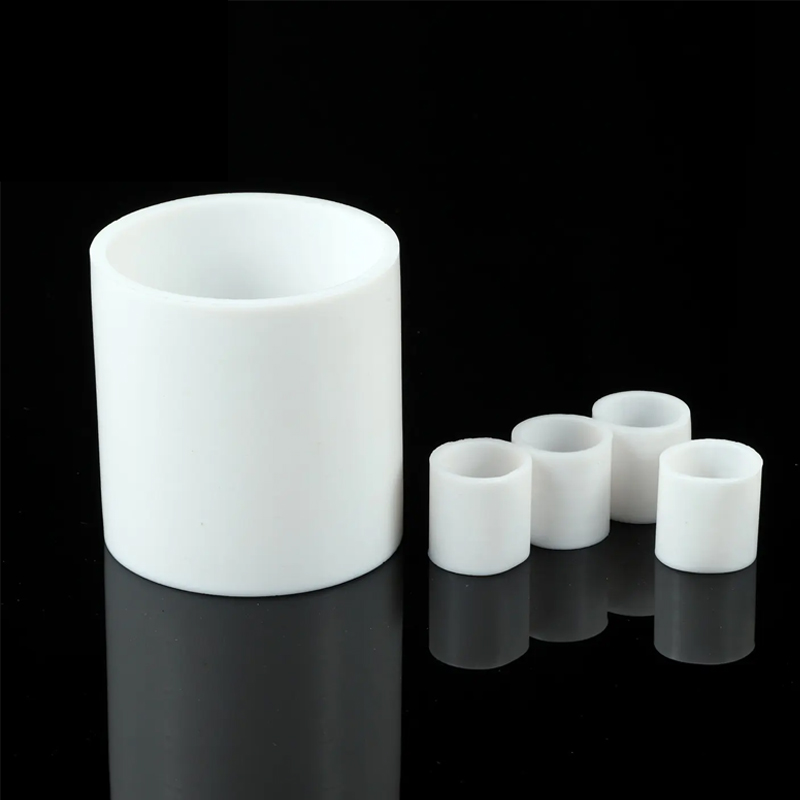

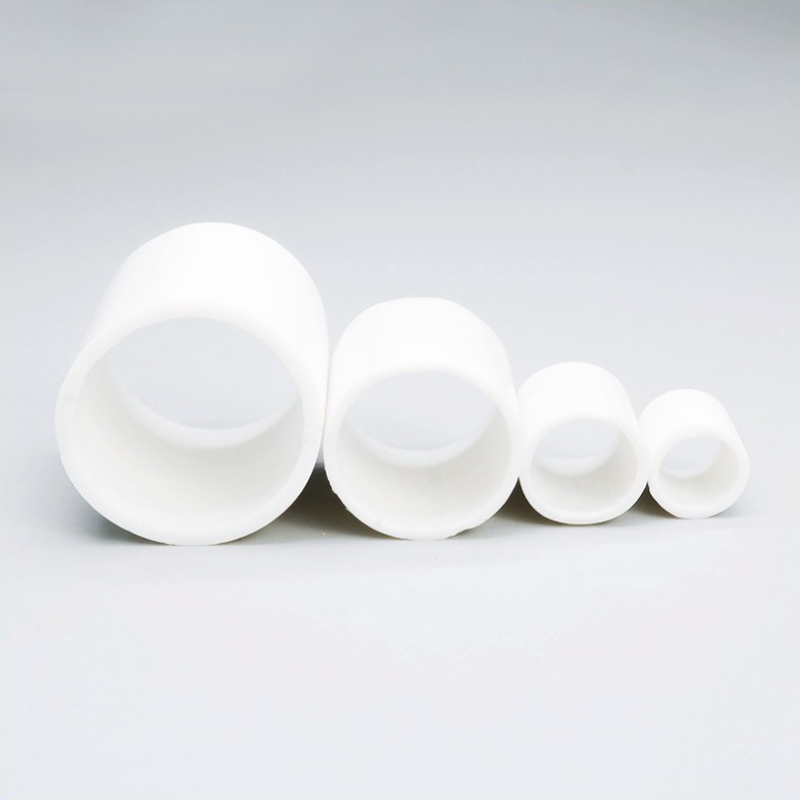

Structural features: PTFE Raschig ring packing comes in two shapes: round Raschig rings and perforated Raschig rings. It is usually directly cut from PTFE tubing and has a simple structure.
Performance advantages: It has excellent high temperature resistance, with a long-term operating temperature of 200-260℃, and also has good low temperature resistance, remaining flexible even at -100℃.
High throughput: The unique structural design ensures good gas and liquid distribution within the packing layer, and the inner surface of the packing ring is easily wetted by the liquid, improving the liquid dispersion and the utilization rate of the packing inner surface.
Low resistance: PTFE Raschig ring packing has a large throughput capacity and low pressure drop, while the mass transfer and separation efficiency of the tower is also high.
In the environmental protection field: PTFE Raschig ring packings can provide good gas-liquid contact conditions and improve treatment efficiency in environmental protection equipment such as sewage treatment and waste gas purification.
| Product Name | PTFE Raschig Ring | |||
| Material | PTFE | |||
| Size
mm |
Surface Area
m2/m3 |
Void Volume
% |
Packing Number
pieces/ m3 |
Packing Density
Kg/m3 |
| 20*20*2 | 267 | 92.8 | 125000 | 550 |
| 25*25*2 | 219 | 93.4 | 60000 | 450 |
| 38*38*2.5 | 165 | 94.6 | 15800 | 420 |
| 50*50*4 | 108 | 94.5 | 6800 | 450 |
| 65*65*5 | 84 | 94.8 | 4600 | 500 |
| 76*76*4 | 73 | 92 | 2000 | 300 |
Comparison with metal Raschig rings:PTFE Raschig ring packing has better corrosion resistance and is suitable for environments with highly corrosive media.
Metal Raschig rings have higher mechanical strength and high temperature resistance, making them suitable for high temperature, high pressure, or heavy mechanical load applications.
Comparison with ceramic Raschig rings:PTFE Raschig ring packing has better toughness and impact resistance, and is not easily broken.
Ceramic Raschig rings have higher high-temperature resistance and chemical stability, but they are more brittle and easily broken.
Comparison with high-efficiency packing materials such as Pall rings:Although the mass transfer efficiency of PTFE Raschig ring packing is slightly lower than that of high-efficiency packings such as Pall rings, its simple structure, ease of manufacturing, and low price still give it a certain degree of market competitiveness.
