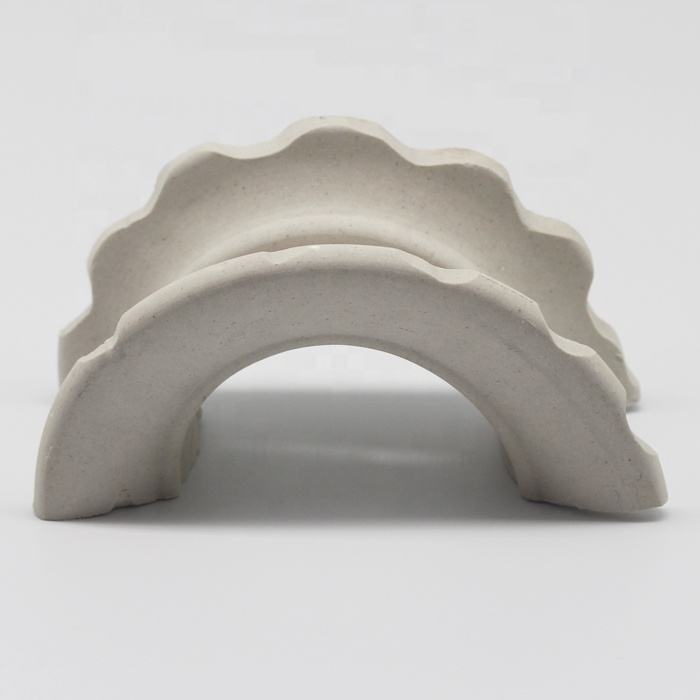

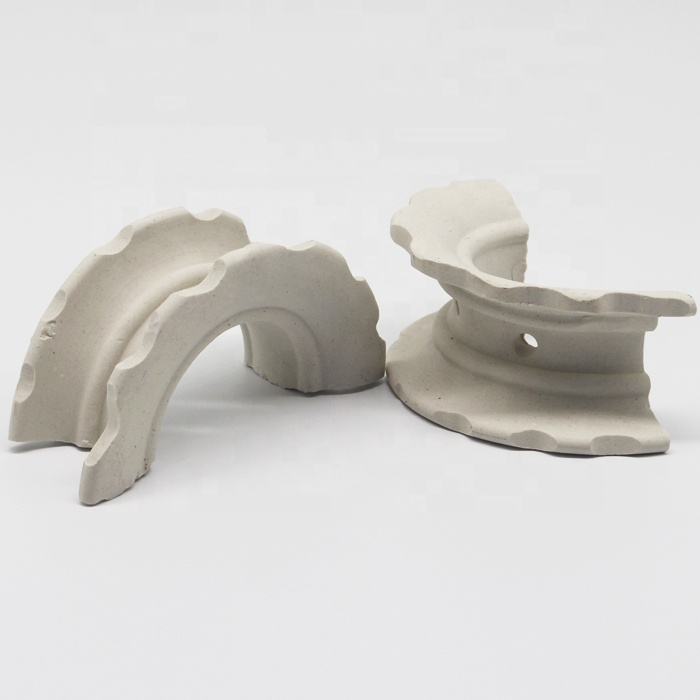

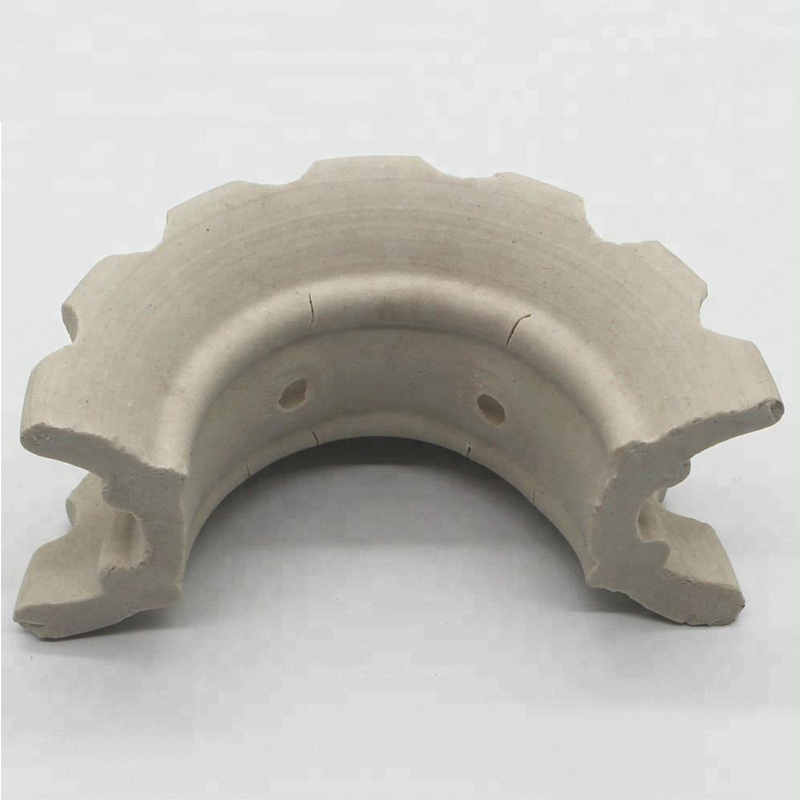

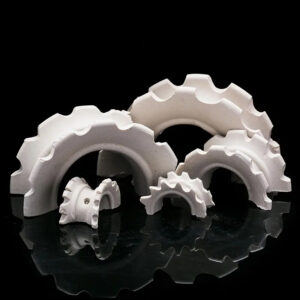

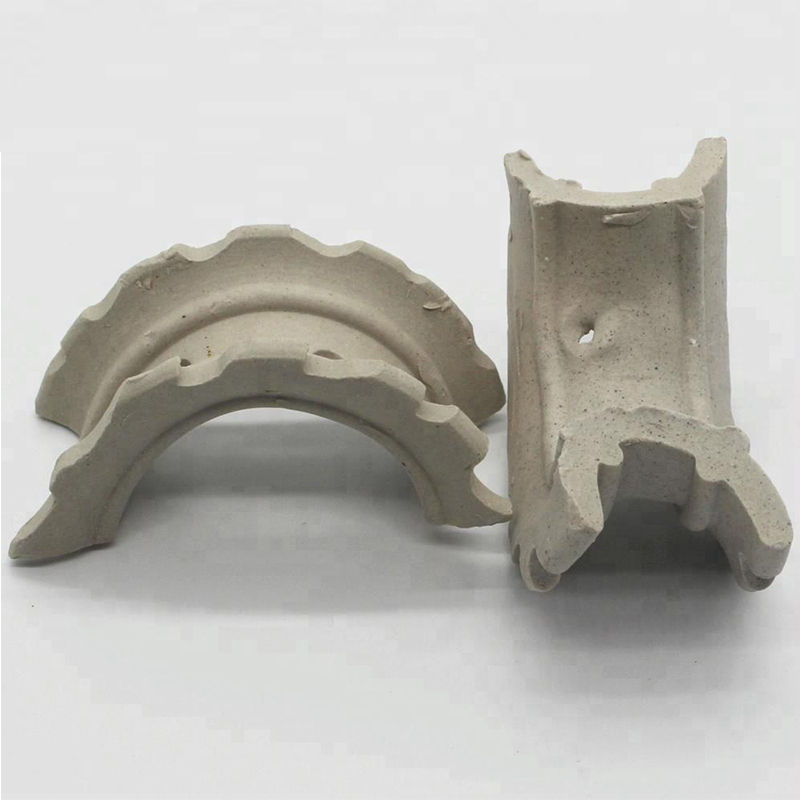

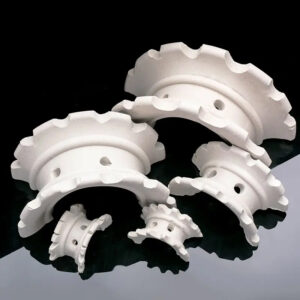

High-temperature and low-temperature resistant ceramic super Intalox saddle ring packing has become an ideal mass transfer packing under harsh working conditions such as high and low temperature, strong corrosion, and large temperature fluctuations due to the inherent temperature resistance of ceramic materials and optimized structural design. It is widely used in separation and purification equipment in the fields of chemical industry, metallurgy, environmental protection, energy, etc.
A:Please send us your product specifications, quantity, and application details. Our sales team will provide a prompt quotation and professional recommendation based on your requirements.
A:We use standard export packaging to ensure safe transportation. Packaging methods can be customized according to product type and customer requirements to protect the goods during shipment.
The unique structural design enables the packing to have a larger surface area and better fluidity within the tower, enhancing the mass transfer efficiency and significantly improving the separation and purification effects.
Compared with traditional packing, ceramic saddle ring packing can reduce the resistance of gas passage, decrease the pressure drop inside the tower, and simultaneously lower energy consumption.
The liquid can quickly pass through the saddle-shaped pipe, adsorb on the surface of the packing and be retained for a relatively long time, avoiding clogging.
It ensures the uniform distribution of the product, makes the air pressure inside the container more stable, avoids vibration due to violent reactions, and reduces damage to the container.
|
Size |
Thickness (mm) |
Specific Surface (m2/m3) |
Void Volume (%) |
Bulk Numbers (Pcs/m3) |
Package Density (kg/m3) |
|
25mm |
3-3.5 |
160 |
78 |
53000 |
650 |
|
38mm |
4-5 |
102 |
80 |
16000 |
600 |
|
50mm |
5-6 |
88 |
80 |
7300 |
580 |
|
76mm |
8.5-9.5 |
58 |
82 |
1800 |
550 |
| Other size also can be provided by custom made! | |||||
Chemical high-temperature separation: high-temperature distillation tower (such as organic silicon monomer purification, aromatics separation), high-temperature absorption tower (such as SO₃ absorption above 400℃ in sulfuric acid production), high-temperature cracking gas washing tower, etc., to withstand the operating temperature of 300-1000℃ in the tower.
Metallurgy and energy: high-temperature coal gas purification tower in steel plant (coal gas temperature 200-800℃), biomass pyrolysis gas desulfurization tower, waste incineration tail gas treatment tower (flue gas temperature 150-600℃), etc., to resist high-temperature flue gas corrosion and thermal shock.
Environmental high-temperature treatment: high-temperature industrial wastewater evaporation tower, high-concentration organic waste liquid incineration post-absorption tower, etc., to adapt to the environment with large temperature fluctuations in the tower (100-500℃).
A variety of tower equipment that can be used in multiple industries,including drying towers, absorption towers, cooling towers,scrubbers,regeneration towers, flame arrestors, distillation towers, reaction towers,etc.in the chemical, metallurgical, gas, fine chemical, H₂SO₄,coal chemical, oxygen production, coking, chlor-alkali industry,petrochemical,environmental protection,food, pharmaceutical and other industries
